AL MURRAD

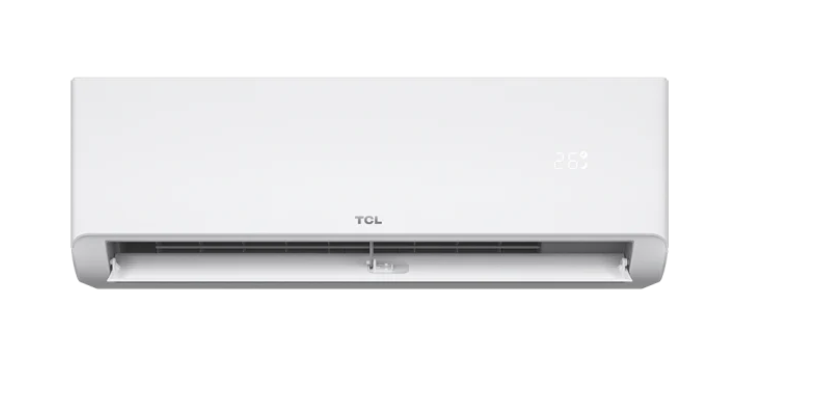

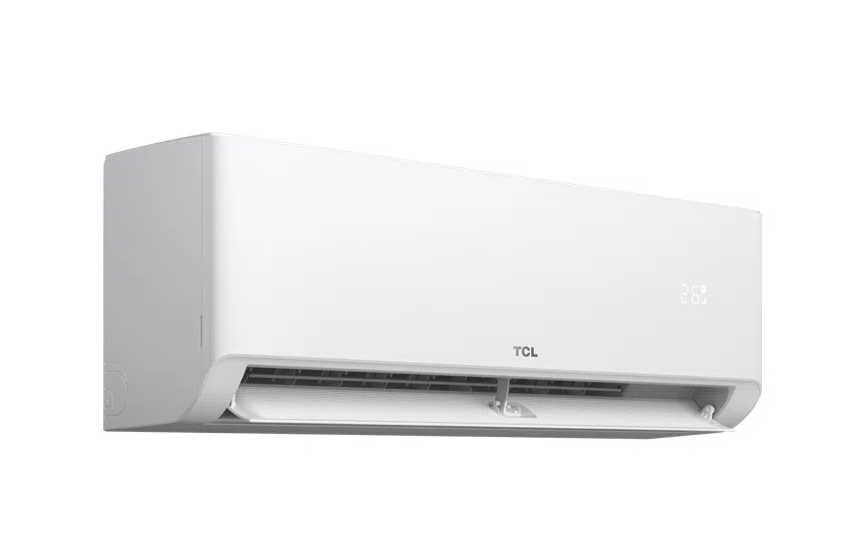

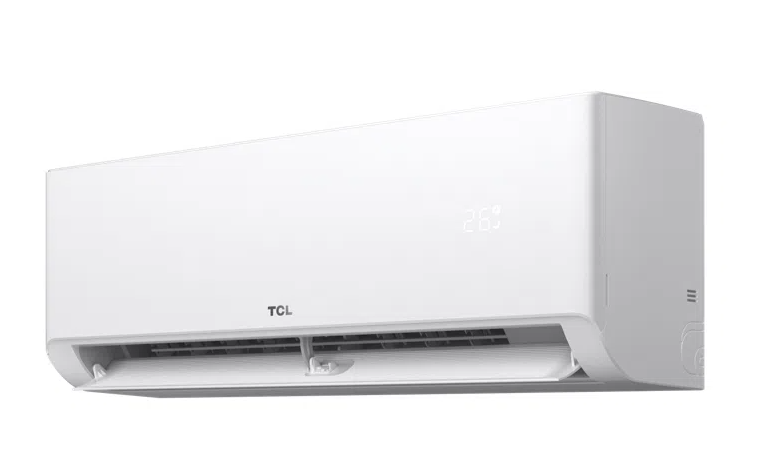

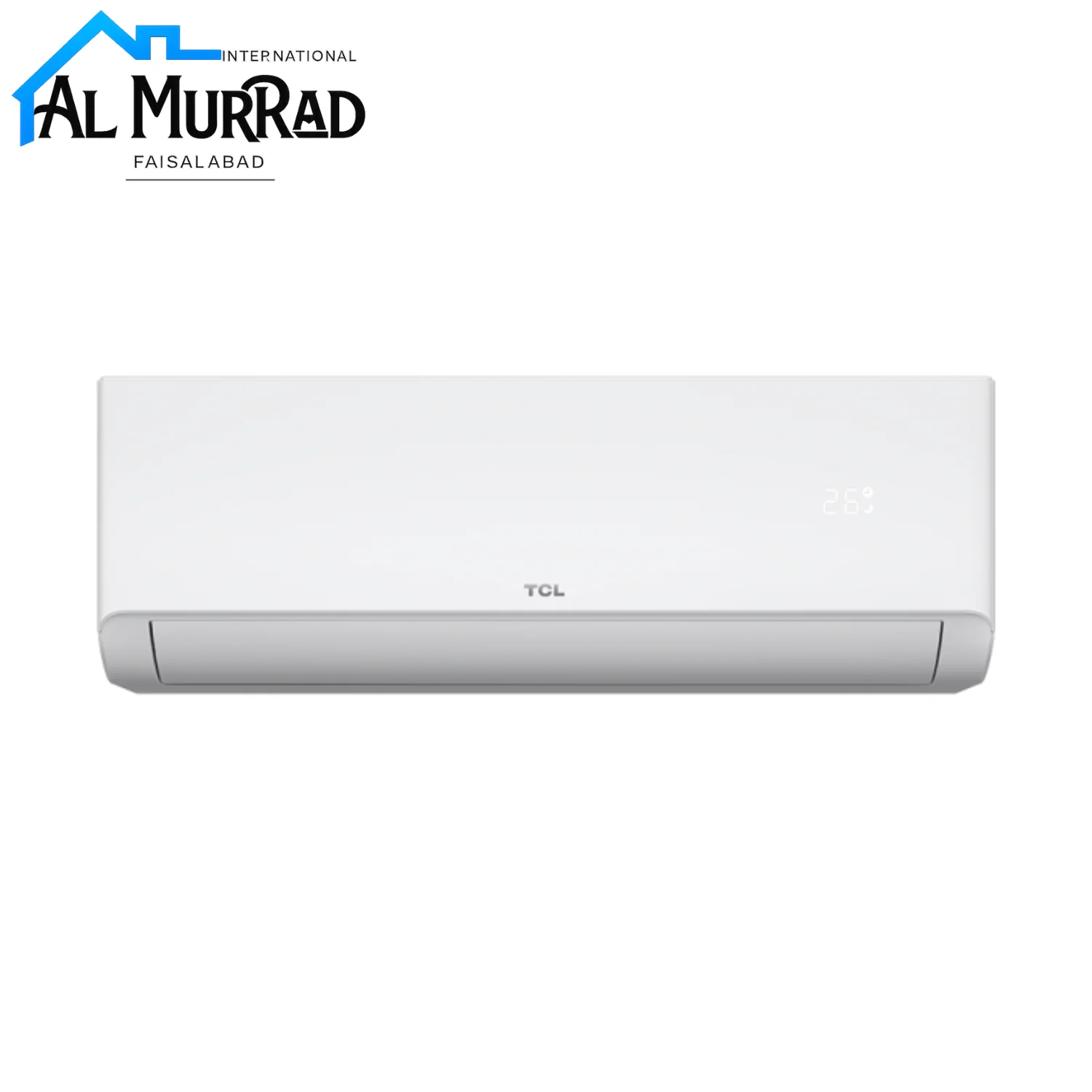

TCL SaveIN-AI-11- 2.0 TON

Rs.196,400.00 PKR

Sale Sold out

2.0TON SaveIN AI Series

· T-AI Energy Saving
· Smart Wi-Fi Control
· Coanda Airflow

· Easy OTA Update




Specification
Details


Declared Cooling Capacity
7040W (1500–7800W)

Declared Heating Capacity
7080W (1500–7900W)

Cooling Design Load (Pdesignc)
7000W

Declared SEER
6.4 W/W

Cooling Energy Class
A++

Declared EER
3.02 W/W

Declared COP
3.25 W/W

Average Heating Design Load (Pdesignh)
4900W

Declared Average SCOP
4.0 W/W

Average Heating Energy Class
A+

Indoor Sound Power (S/H/M/L/Mute)
58 / 56 / 51 / 46 / 40 dB(A)

Outdoor Sound Power
67 dB(A)

Power Supply
220–240V~, 50Hz, 1 Phase

Power Supply Side
Outdoor Unit

Voltage Range
165–265V

Cooling Operating Current
10.5A (1.8–12.6A)

Heating Operating Current
10.0A (1.8–13.4A)

Cooling Power Consumption
2324W (390–2800W)

Heating Power Consumption
2178W (390–3000W)

Refrigerant
R32

Refrigerant Charge
1.14kg

Global Warming Potential (GWP)
675

CO₂ Equivalent
0.77 tonnes

Indoor Air Circulation – Cooling
1000m³/h

Indoor Air Circulation – Heating
1000m³/h

Gas Connecting Pipe
1/2″

Liquid Connecting Pipe
1/4″

Recommended Application Area
27–45m²

Indoor Ambient Temperature – Cooling
17°C to 32°C

Indoor Ambient Temperature – Heating
0°C to 30°C

Outdoor Ambient Temperature – Cooling
-15°C to 53°C

Outdoor Ambient Temperature – Heating
-20°C to 30°C

Indoor Unit Dimensions (W × H × D)
1005 × 321.5 × 220mm

Outdoor Unit Dimensions (W × H × D)
920 × 699 × 380mm

Indoor Unit Net Weight
11kg

Outdoor Unit Net Weight
38kg

Indoor Unit Packing Dimensions (W × H × D)
1096 × 390 × 297mm

Outdoor Unit Packing Dimensions – No Pipe (W × H × D)
949 × 732 × 392mm

Indoor Unit Gross Weight
13kg

Outdoor Unit Gross Weight
40.5kg

Specification	Details
Declared Cooling Capacity	7040W (1500–7800W)
Declared Heating Capacity	7080W (1500–7900W)
Cooling Design Load (Pdesignc)	7000W
Declared SEER	6.4 W/W
Cooling Energy Class	A++
Declared EER	3.02 W/W
Declared COP	3.25 W/W
Average Heating Design Load (Pdesignh)	4900W
Declared Average SCOP	4.0 W/W
Average Heating Energy Class	A+
Indoor Sound Power (S/H/M/L/Mute)	58 / 56 / 51 / 46 / 40 dB(A)
Outdoor Sound Power	67 dB(A)
Power Supply	220–240V~, 50Hz, 1 Phase
Power Supply Side	Outdoor Unit
Voltage Range	165–265V
Cooling Operating Current	10.5A (1.8–12.6A)
Heating Operating Current	10.0A (1.8–13.4A)
Cooling Power Consumption	2324W (390–2800W)
Heating Power Consumption	2178W (390–3000W)
Refrigerant	R32
Refrigerant Charge	1.14kg
Global Warming Potential (GWP)	675
CO₂ Equivalent	0.77 tonnes
Indoor Air Circulation – Cooling	1000m³/h
Indoor Air Circulation – Heating	1000m³/h
Gas Connecting Pipe	1/2″
Liquid Connecting Pipe	1/4″
Recommended Application Area	27–45m²
Indoor Ambient Temperature – Cooling	17°C to 32°C
Indoor Ambient Temperature – Heating	0°C to 30°C
Outdoor Ambient Temperature – Cooling	-15°C to 53°C
Outdoor Ambient Temperature – Heating	-20°C to 30°C
Indoor Unit Dimensions (W × H × D)	1005 × 321.5 × 220mm
Outdoor Unit Dimensions (W × H × D)	920 × 699 × 380mm
Indoor Unit Net Weight	11kg
Outdoor Unit Net Weight	38kg
Indoor Unit Packing Dimensions (W × H × D)	1096 × 390 × 297mm
Outdoor Unit Packing Dimensions – No Pipe (W × H × D)	949 × 732 × 392mm
Indoor Unit Gross Weight	13kg
Outdoor Unit Gross Weight	40.5kg
